Flat Expanded Metal
Standard Expanded Metal
Expanded Metal Grating
Diamond Case Shafting
STANDARD MESH TYPES - Stock width of panels, 2' and 3'. Stock length panels 20' and 24'. For 3/16" main bars 5/16" hexagonal cross bars are used. For 1/8" main bars 1/4" hexagonal bars are used.
CLOSE MESH TYPES - Stock width of panels, 2' and 3'. Stock length panels 20' and 24'. For 3/16" main bars 5/16" hexagonal cross bars are used. For 1/8" main bars 1/4" hexagonal cross bars are used.
SMOOTH SURFACES - Smooth surface steel grating is available in a wide variety of materials for many applications.
SERRATED SURFACES - Serrated surfaces are available on many types of grating. The serrated surface provides a safe, slip-resistant surface. These surfaces offer more secure footing where a variety of liquids such as oil, chemicals, or water are present.
FLATTENED EXPANDED METAL
Flattened expanded metal is manufactured by passing the standard expanded sheet through a cold roll reducing mill. Flattened expanded metal turns the strands and bonds down to provide a flattened surface, reducing the thickness (gauge) and elongating the pattern. Thickness may vary plus or minus 10% from published dimensions.
STANDARD EXPANDED METAL
Standard expanded metal as it comes from the press. The strands and bonds are set at a uniform angle to the plane on the sheet. This gives added strength and rigidity, as well as skid-resistant surface. Standard expanded metal is abbreviated XM.
Grating is a standard expanded metal pattern produced from heavier gauge low carbon steel plates. Strands and the openings of grating are considerably larger than other meshes. It is ideal for use wherever a strong, durable, lightweight surface is needed. Although used primarily for pedestrian traffic, grating can accommodate heavier loads if properly supported.
GRIP STRUT® Safety Grating
GRIP STRUT® is a lightweight metal grating designed for safety underfoot. The unique one-piece diamond shaped construction provides slip resistance in all directions. GRIP STRUT® is ideally suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions.
PERF-O GRIP® Grating
Perf-O Grip® is a plank metal grating offering a slightly less aggressive surface than Grip Strut®. Perf-O Grip® is made with a round hole pattern. Perf-O Grip's® light weight and resilient design makes the product easy to handle and install producing a very economical installed cost.
FULLY THREADED STEEL BARS
Low Carbon Plain Low Carbon Zinc Plated High Strength (B7) Plain High Strength (B7) Zinc Plated Stainless Steel 2’, 3’, 6’, 10’ & 12’ Lengths
SQUARE KEY STOCK
Zinc plated finish (cold drawn) 12” & 36” Lengths
Diamond Case Linear Shafting Specifications:
• Material - 1060 or 440C stainless
• Dimensional Tolerance - See pages 19-4 & 19-5
• Roundness - Superior
• Cylindricity - High
• Straightness - .001/.002 TIR cumulative
• Surface Finish - 8 RMS or better
• Hardness - See pages 19-4 & 19-5
• Depth of Hardness - See pages 19-4 & 19-5
SHIPPING STEEL STRAPPING

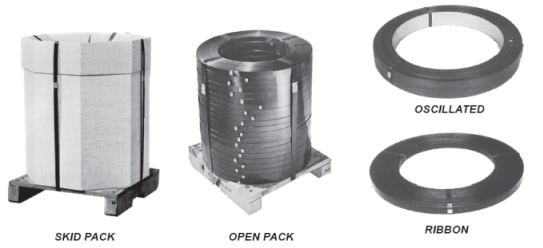

All Regular Duty and Supramet is shipped in approximately 100 lb. (45kg) oscillated coils, which are approximately 1100 lbs. (499.2 kg) per skid. Heavy duty and High Tensile strapping is shipped in approximately 60-105 lb. ribbon wound coils, which are approximately 1500 to 2500 lbs. (680.7 to 1134.5 kg) per skid.
Skids are available in cardboard wrapped Skid Packs and unwrapped Open Packs.
