Blanchard rotary grinding
at Alro's grinding facility
|
Plate Grinding
|
|
Blanchard (Rotary) Grinding: Alro’s Blanchard Grinding machines allow for great turnaround time and the capability of grinding metals with a 144" swing from corner to corner.
Reciprocal Grinding: For jobs requiring a smoother finish and a tighter tolerance. Alro offers reciprocal grinding with a surface capacity of 24" x 120".
|
Machining and grinding performed according to customer specifcations

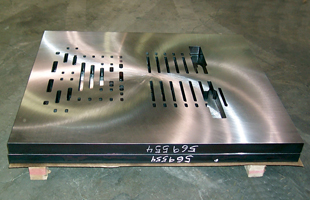

Your order is placed on a skid built
to fit your order
Cardboard is placed on top and bottom of ground plate for better protection |
Rotary
Grinders |
Capacity
/ Height |
Surface
Finish |
Carbon
|
Alloy
|
Tool
Steel
|
Cast
Iron
|
Stainless
|
Aluminum
|
Red
Metals
|
| 144" | 65" max | 100 RMS Standard | Yes | Yes | Yes | Yes | *Inquire | *Inquire | No |
| 110" | 36" max | 100 RMS Standard | Yes | Yes | Yes | Yes | *Inquire | *Inquire | No |
| 100" | 36" max | 100 RMS Standard | Yes | Yes | Yes | Yes | *Inquire | *Inquire | No |
| 72" | 30" max | 100 RMS Standard | Yes | Yes | Yes | Yes | *Inquire | *Inquire | No |
| 42" | 20" max | 100 RMS Standard | Yes | Yes | Yes | Yes | *Inquire | *Inquire | No |
|
Reciprocal
Grinders |
Capacity
/ Height |
Surface
Finish |
Carbon
|
Alloy
|
Tool
Steel
|
Cast
Iron
|
Stainless
|
Aluminum
|
Red
Metals
|
| Mattison | 24" x 120" | *Inquire | Yes | Yes | Yes | Yes | *Inquire | *Inquire | No |
|
This chart is a guideline only. For more specifc information, please contact your Alro representative. |
|
|
